Understanding 5 Micron Total Tolerance: Precision Redefined @ FKI

How Ultra-Tight Tolerances Drive Innovation and Quality in Modern Manufacturing

In the world of high-precision engineering, few terms carry as much weight as “5 micron total tolerance.” As industries continually push the boundaries of what is possible, the demand for parts and assemblies with ever-tighter tolerances has soared. At FK Instrument (FKI), we have embraced this challenge—delivering components and solutions where a 5 micron (0.005 mm) total tolerance is not just an aspiration but a standard. But what does this level of precision mean, why does it matter, and how do we achieve it? In this article, we’ll explore the significance of 5 micron total tolerance, its applications, and how FKI’s expertise enables customers to innovate with confidence.

What Is “5 Micron Total Tolerance”?

Tolerance, in engineering and manufacturing, refers to the permissible variation in a dimension or measurement. It is the difference between the maximum and minimum allowable limits. A 5 micron total tolerance means that the entire allowable variation from the lowest to the highest specification is only five thousandths of a millimeter (0.005 mm, or 0.000197 inches). To put this into perspective, a human hair is typically 70–100 microns thick—so a 5 micron tolerance is about 15 to 20 times thinner than a single strand of hair.

This ultra-tight tolerance is often required in industries where even the smallest deviation can impact performance, reliability, or safety. Achieving such precision is a testament to advanced manufacturing capabilities, meticulous quality control, and deep technical expertise.

Why Does 5 Micron Tolerance Matter?

The importance of a 5 micron total tolerance cannot be overstated in critical applications. Here are a few reasons why it matters:

• Performance and Functionality: In high-precision assemblies, even minor dimensional variations can lead to misalignment, increased friction, or loss of efficiency. A 5 micron tolerance ensures that parts fit together perfectly, supporting optimal performance.
• Reliability and Longevity: Components manufactured to ultra-tight tolerances experience less wear and tear, reducing the risk of premature failure and extending the lifespan of the end product.
• Innovation and Miniaturization: As products become smaller and more complex—think medical devices, advanced sensors, or micro-electromechanical systems (MEMS)—the need for parts with micron-level tolerances grows. This enables designers to push the envelope in creating next-generation technologies.
• Regulatory and Industry Standards: Many industries, such as aerospace, automotive, and medical technology, require strict adherence to tolerances for safety and compliance. Meeting a 5 micron total tolerance is often a prerequisite for certification and market access.

Applications of 5 Micron Tolerance

Where is such precision required? Here are some key areas where a 5 micron total tolerance is essential:

• Medical Devices: Surgical instruments, implantable components, and diagnostic tools often require micron-level tolerances to ensure patient safety and device efficacy.
• Semiconductor Manufacturing: The production of chips and microelectronic devices demands extreme precision to maintain performance and yield.
• Optics and Photonics: Lenses, mirrors, and alignment fixtures for lasers and imaging equipment must be manufactured to the tightest tolerances for optimal optical performance.
• Precision Machinery: High-speed spindles, linear guides, and ball screws in CNC machines and robotics rely on ultra-precise components to minimize vibration and maximize accuracy.
• Aerospace and Defense: Critical systems such as actuators, sensors, and flight controls require the utmost precision to function reliably under extreme conditions.

How FKI Delivers 5 Micron Total Tolerance

At FK Instrument, achieving a 5 micron total tolerance is the result of a holistic approach that combines advanced technology, skilled craftsmanship, and rigorous quality assurance. Here’s how we make it possible:

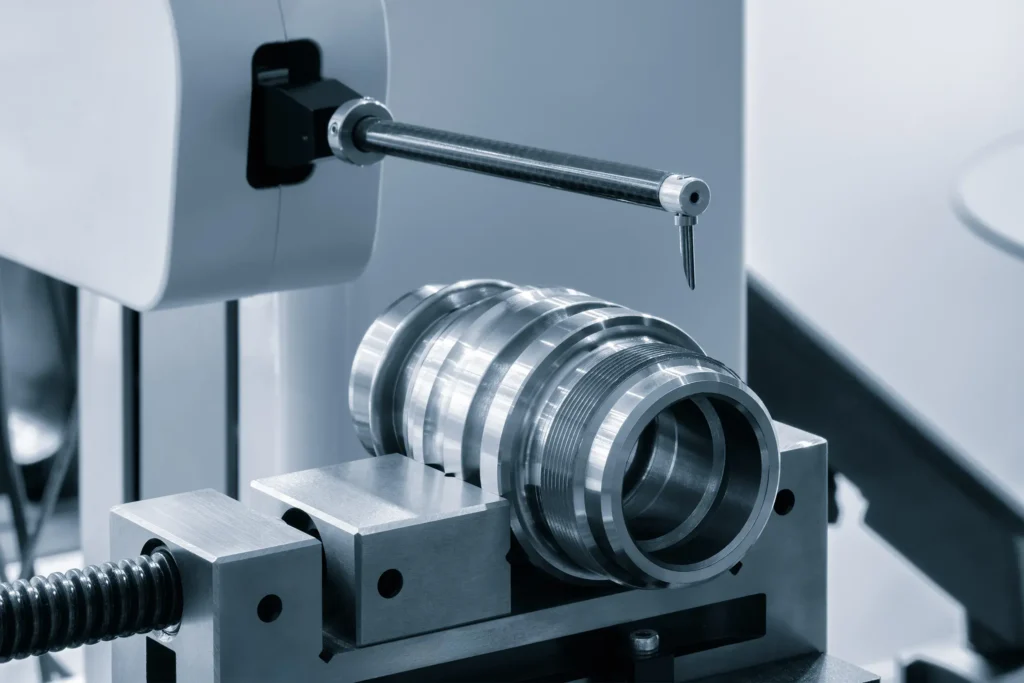

1. State-of-the-Art Equipment: Our manufacturing facilities are equipped with ultra-precision CNC machines, coordinate measuring machines (CMM), and optical comparators capable of measuring and machining at the micron level. Environmental controls ensure temperature and humidity do not introduce unwanted variations.
2. Expert Engineering: Our team of experienced engineers collaborates closely with clients to understand their requirements, select appropriate materials, and design for manufacturability. This ensures that every step of the process is optimized for precision.
3. Meticulous Process Control: From raw material inspection to final assembly, every stage is governed by strict process controls and standardized workflows. Statistical process control (SPC) techniques are used to monitor and maintain consistency.
4. Comprehensive Quality Assurance: Each component is subject to thorough inspection using calibrated instruments. Measurement data is logged and analyzed to confirm that every part meets the specified 5 micron total tolerance.
5. Continuous Improvement: We invest in ongoing training, process optimization, and technology upgrades to stay at the forefront of precision manufacturing. Customer feedback and data-driven analysis drive our commitment to excellence.

The FKI Advantage: Precision You Can Trust

Choosing FK Instrument as your precision manufacturing partner means more than just meeting specifications—it’s about unlocking new possibilities for your products and your business. Our proven ability to deliver 5 micron total tolerances supports industries where failure is not an option and innovation is a necessity.

Whether you are developing cutting-edge medical devices, advanced optical systems, or mission-critical aerospace components, FKI stands ready to help you achieve your goals. Our commitment to quality, collaboration, and continuous improvement ensures that your parts are delivered on time, every time, and to the strictest standards.

Conclusion

The journey to a 5 micron total tolerance is one of relentless pursuit of perfection. It requires the right blend of technology, expertise, and dedication. At FK Instrument, we are proud to offer our customers the precision they demand and the reliability they expect. If your next project requires uncompromising accuracy, let’s start a conversation—because at FKI, precision isn’t just our promise; it’s our passion.
